Radial aluminum electrolytic capacitor with 470µF capacitance and 20% tolerance. Features a 50V DC rated voltage, 105°C maximum operating temperature, and 5000-hour life. This through-hole component has a 5mm lead pitch, 0.6mm lead diameter, and 12.5mm diameter. Offers 50mΩ ESR and 1.832A ripple current.
PackageRadial
Voltage50V
Capacitance470uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEU-FC1H471B technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| ESR (Equivalent Series Resistance) | 50mR |
| Height | 25mm |
| Height - Seated (Max) | 1.063inch |
| Impedance | 50mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Leakage Current | 3uA |
| Length | 25mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.832A |
| Ripple Current (AC) | 1.832A |
| RoHS Compliant | Yes |
| Series | FC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FC1H471B Datasheet
Download the complete datasheet for Panasonic EEU-FC1H471B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

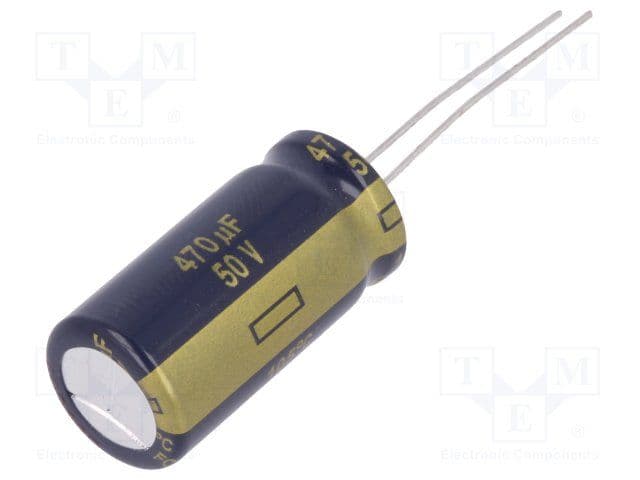

Product Images
