Radial aluminum electrolytic capacitor with 2200µF capacitance and 6.3V DC rated voltage. Features 20% tolerance, 18mΩ ESR, and 2.47A ripple current capability. Operates from -40°C to 105°C with a 5000-hour life rating. Through-hole mounting, 10mm diameter, 25mm height, and 5mm lead pitch. RoHS compliant.
PackageRadial
Voltage6.3V
Storage25mm
Capacitance2.2mF
Quick Jump:
Technical Specifications
Panasonic EEU-FM0J222L technical specifications.
General
Capacitance
2.2mF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.22%
ESR (Equivalent Series Resistance)
18mR
Height
25mm
Impedance
18mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Length
17mm
Lead Pitch
5mm
Length
25mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
2.47A
RoHS Compliant
Yes
Series
FM
Size
25mm
Termination
Radial
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FM0J222L Datasheet
Download the complete datasheet for Panasonic EEU-FM0J222L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

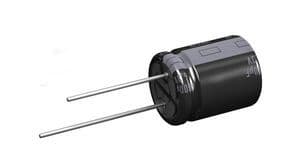

Product Images
