General purpose aluminum electrolytic capacitor, 3.9mF capacitance, 10V DC rated voltage, and 20% tolerance. Features 13mR ESR, 3.63A ripple current, and a maximum operating temperature of 105°C. Radial package with 5mm lead pitch, 12.5mm diameter, and 30mm height. Designed for through-hole PCB mounting with a lifespan of 7000 hours.
PackageRadial
Voltage10V
Capacitance3.9mF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic EEU-FM1A392L technical specifications.
General
| Capacitance | 3.9mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.19% |
| ESR (Equivalent Series Resistance) | 13mR |
| Height | 30mm |
| Height - Seated (Max) | 1.26inch |
| Impedance | 13mR |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Length | 30mm |
| Life (Hours) | 7000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 3.63A |
| Ripple Current (AC) | 3.63A |
| RoHS Compliant | Yes |
| Series | FM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FM1A392L Datasheet
Download the complete datasheet for Panasonic EEU-FM1A392L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

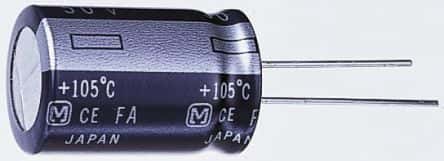

Product Images
