Aluminum electrolytic capacitor, 120µF capacitance, 16V DC rated voltage, 20% tolerance. Features 130mΩ ESR, 455mA ripple current, and 19.2µA leakage current. Radial package with 2.5mm lead pitch, 6mm diameter, and 11.2mm height. Operates from -40°C to 105°C with a 2000-hour life rating. Through-hole mounting, RoHS compliant.
PackageRadial
Voltage16V
Capacitance120uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEU-FM1C121 technical specifications.
General
| Capacitance | 120uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| ESR (Equivalent Series Resistance) | 130mR |
| Height | 11.2mm |
| Impedance | 130mR |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Leakage Current | 19.2uA |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 455mA |
| Ripple Current (AC) | 455mA |
| RoHS Compliant | Yes |
| Series | FM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FM1C121 Datasheet
Download the complete datasheet for Panasonic EEU-FM1C121 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

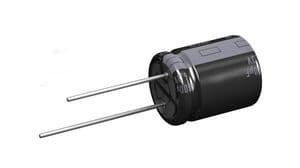

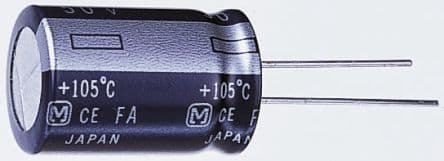

Product Images
