330µF, 16V radial aluminum electrolytic capacitor with 20% tolerance. Features 56mΩ ESR and 950mA ripple current at 105°C. Designed for through-hole PCB mounting with a 3.5mm lead pitch and 0.6mm lead diameter. Offers a 3000-hour life at rated voltage and temperature, with a leakage current of 10nA. RoHS compliant and lead-free.
PackageRadial
Voltage16V
Capacitance330uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEU-FM1C331 technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.16%
ESR (Equivalent Series Resistance)
56mR
Height
11.5mm
Impedance
56mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Length
17mm
Lead Pitch
3.5mm
Leakage Current
10nA
Length
11.5mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
950mA
Ripple Current (AC)
950mA
RoHS Compliant
Yes
Series
FM
Termination
Radial
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FM1C331 Datasheet
Download the complete datasheet for Panasonic EEU-FM1C331 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

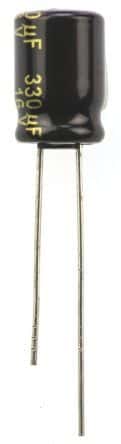

Product Images
