68µF radial aluminum electrolytic capacitor with 20% tolerance and 16V DC voltage rating. Features 300mΩ ESR/impedance, 280mA ripple current, and a 2000-hour life at 105°C. This through-hole component has a 2mm lead pitch, 5mm diameter, and 11mm height, with a 0.5mm lead diameter. RoHS compliant and lead-free.
PackageRadial
Voltage16V
Capacitance68uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEU-FM1C680 technical specifications.
General
| Capacitance | 68uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| ESR (Equivalent Series Resistance) | 300mR |
| Height | 11mm |
| Height - Seated (Max) | 0.492inch |
| Impedance | 300mR |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 280mA |
| Ripple Current (AC) | 280mA |
| RoHS Compliant | Yes |
| Series | FM |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FM1C680 Datasheet
Download the complete datasheet for Panasonic EEU-FM1C680 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

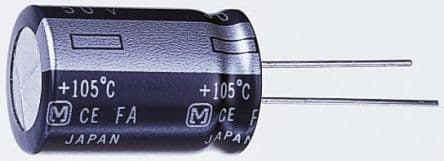

Product Images
