220µF radial aluminum electrolytic capacitor with 35V DC voltage rating and 20% tolerance. Features 38mΩ ESR, 1.29A ripple current, and a dissipation factor of 0.12%. Operates from -40°C to 105°C with a 4000-hour life expectancy. Through-hole mounting with a 5mm lead pitch and 10mm diameter.
PackageRadial
Voltage35V
Storage12.5mm
Capacitance220uF
Quick Jump:
Technical Specifications
Panasonic EEU-FM1V221 technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 38mR |
| Height | 12.5mm |
| Impedance | 38mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Length | 12.5mm |
| Life (Hours) | 4000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.29A |
| Ripple Current (AC) | 1.29A |
| RoHS Compliant | Yes |
| Series | FM |
| Size | 12.5mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FM1V221 Datasheet
Download the complete datasheet for Panasonic EEU-FM1V221 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

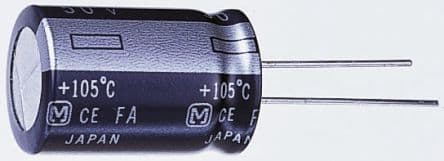

Product Images
