General purpose aluminum electrolytic capacitor, 1500µF capacitance, 6.3V voltage rating, and 20% tolerance. Features 30mΩ ESR and 1.56A ripple current capability. Radial package with 8mm diameter, 20mm height, and 3.5mm lead pitch. Rated for 9000 hours at 105°C, with a leakage current of 94.5µA.
PackageRadial
Voltage6.3V
Capacitance1.5mF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic EEU-FR0J152L technical specifications.
General
Capacitance
1.5mF
Package/Case
Radial
Construction
RADIAL
Diameter
8mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
30mR
Height
20mm
Impedance
30mR
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
3.5mm
Lead/Base Style
Straight
Leakage Current
94.5uA
Length
20mm
Life (Hours)
9000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.56A
Ripple Current (AC)
1.56A
RoHS Compliant
Yes
Series
FR
Termination
Radial
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-FR0J152L Datasheet
Download the complete datasheet for Panasonic EEU-FR0J152L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

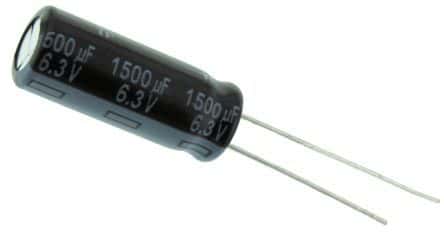

Product Images
