1800µF, 16V radial aluminum electrolytic capacitor with 20% tolerance. Features 18mΩ ESR and 2.47A ripple current capability. Operates from -40°C to 105°C with a 10,000-hour life rating. Through-hole mounting with 5mm lead pitch and 0.6mm lead diameter. RoHS compliant.
PackageRadial
Voltage16V
Capacitance1.8mF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1C182L technical specifications.
General
| Capacitance | 1.8mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| ESR (Equivalent Series Resistance) | 18mR |
| Height | 25mm |
| Impedance | 18mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 288uA |
| Length | 25mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 2.47A |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1C182L Datasheet
Download the complete datasheet for Panasonic EEU-FR1C182L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

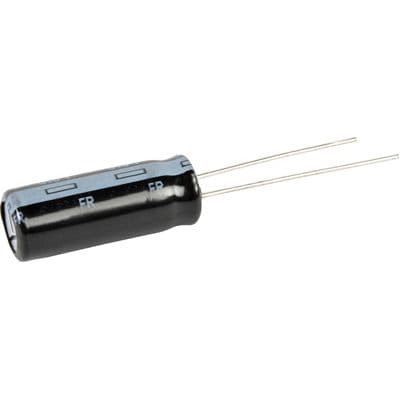

Product Images
