General purpose aluminum electrolytic capacitor with 330µF capacitance and 25V DC rated voltage. Features 20% tolerance, 56mΩ ESR, and 950mA ripple current. Radial package measures 8mm diameter by 11.5mm height with a 5mm lead pitch. Rated for 6000 hours at 105°C, with a temperature range of -40°C to 105°C. Through-hole mounting, lead-free, and RoHS compliant.
PackageRadial
Capacitance330uF
Voltage Rating25V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic EEU-FR1E331B technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 56mR |
| Features | General Purpose |
| Height | 11.5mm |
| Height - Seated (Max) | 0.453inch |
| Impedance | 56mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Length | 11.5mm |
| Life (Hours) | 6000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1000 |
| Packaging | Ammo Pack |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 950mA |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1E331B Datasheet
Download the complete datasheet for Panasonic EEU-FR1E331B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

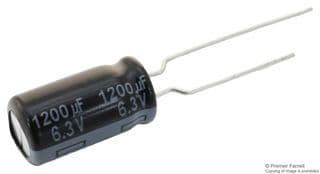

Product Images
