Radial aluminum electrolytic capacitor with 820µF capacitance and 25VDC voltage rating. Features 20mΩ ESR, 2.18A ripple current, and a 10x20mm radial package with 5mm lead pitch. Operates from -40°C to 105°C with a 10,000-hour life expectancy. RoHS compliant and lead-free.
PackageRadial
Voltage25V
Capacitance820uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1E821 technical specifications.
General
| Capacitance | 820uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 14% |
| ESR (Equivalent Series Resistance) | 20mR |
| Height | 20mm |
| Impedance | 20mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 205uA |
| Length | 20mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 2.18A |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1E821 Datasheet
Download the complete datasheet for Panasonic EEU-FR1E821 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

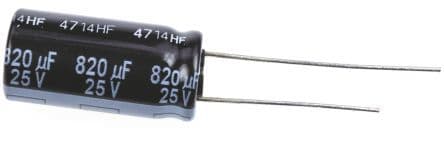

Product Images
