General purpose aluminum electrolytic capacitor, 100µF capacitance, 50V DC rated voltage, and 20% tolerance. Features a radial package with 5mm lead pitch, 8mm diameter, and 11.5mm height. Offers 870mA ripple current, 61mΩ ESR, and a lifespan of 6000 hours at 105°C. Through-hole mounting for PCB applications, supplied in tape and reel packaging.
PackageRadial
Capacitance100uF
Voltage Rating50V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic EEU-FR1H101B technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 61mR |
| Features | General Purpose |
| Height | 11.5mm |
| Height - Seated (Max) | 0.512inch |
| Impedance | 61mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Length | 11.5mm |
| Life (Hours) | 6000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 870mA |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1H101B Datasheet
Download the complete datasheet for Panasonic EEU-FR1H101B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

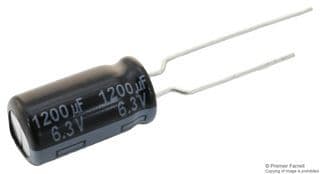

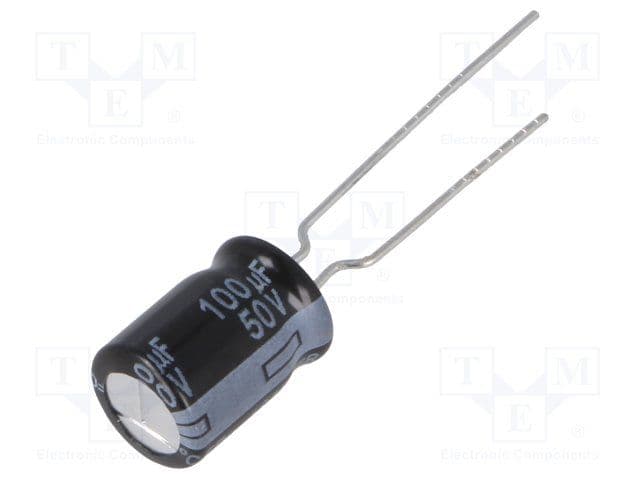

Product Images
