General purpose radial aluminum electrolytic capacitor with 1000µF capacitance and 20% tolerance. Features a 50V DC voltage rating, 105°C maximum operating temperature, and 10000 hours of life. This through-hole component has a 16mm diameter, 25mm height, 7.5mm lead pitch, and 0.8mm lead diameter. Includes a 3.32A ripple current rating, 16mΩ impedance, and 500µA leakage current.
PackageRadial
Capacitance1mF
Voltage Rating50V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic EEU-FR1H102B technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Diameter | 16mm |
| Dissipation Factor | 10% |
| Features | General Purpose |
| Height | 25mm |
| Height - Seated (Max) | 0.984inch |
| Impedance | 16mR |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 500uA |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 3.32A |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Through Hole |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1H102B Datasheet
Download the complete datasheet for Panasonic EEU-FR1H102B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

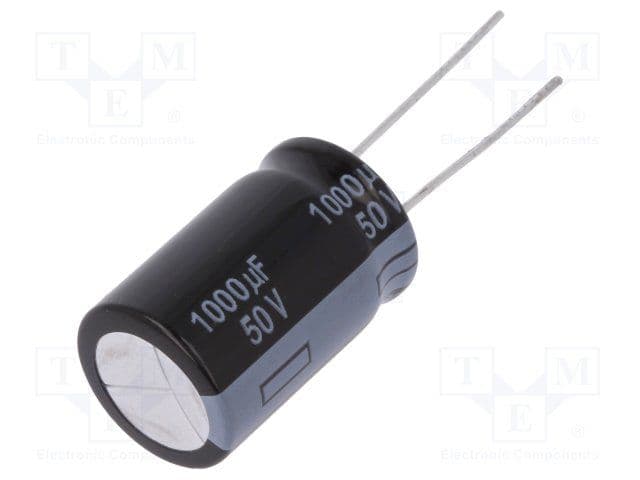

Product Images
