Aluminum electrolytic capacitor with 1.2mF capacitance and 35V DC rating. Features 20% tolerance, 15mΩ ESR, and 3.19A ripple current capability. Designed for through-hole PCB mounting with a 5mm lead pitch and radial termination. Operates from -40°C to 105°C with a 10,000-hour lifespan. Dimensions are 12.5mm diameter and 25mm height.
PackageRadial
Voltage35V
Capacitance1.2mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1V122 technical specifications.
General
| Capacitance | 1.2mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 15mR |
| Height | 25mm |
| Height - Seated (Max) | 1.063inch |
| Impedance | 15mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Length | 25mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 3.19A |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1V122 Datasheet
Download the complete datasheet for Panasonic EEU-FR1V122 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

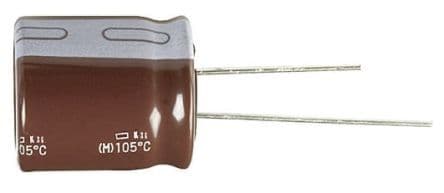

Product Images
