Radial aluminum electrolytic capacitor with 680µF capacitance and 35VDC voltage rating. Features 18mΩ ESR, 2.47A ripple current, and a 10,000-hour life at 105°C. This through-hole component has a 5mm lead pitch, 10mm diameter, and 25mm height, with a 20% capacitance tolerance. RoHS compliant and lead-free.
PackageRadial
Voltage35V
Capacitance680uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEU-FR1V681L technical specifications.
General
| Capacitance | 680uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 18mR |
| Height | 25mm |
| Height - Seated (Max) | 1.063inch |
| Impedance | 18mR |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 238uA |
| Length | 25mm |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 2.47A |
| RoHS Compliant | Yes |
| Series | FR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEU-FR1V681L Datasheet
Download the complete datasheet for Panasonic EEU-FR1V681L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

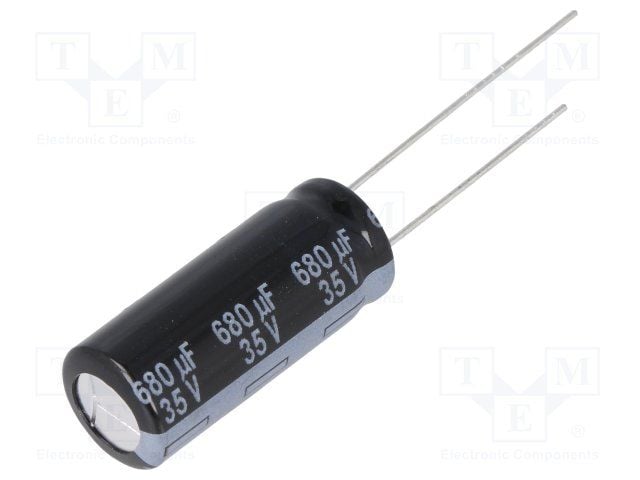

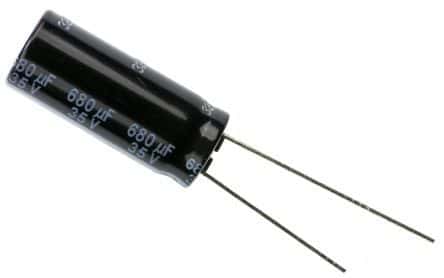

Product Images
