Aluminum electrolytic capacitor with 4700 µF capacitance and 20% tolerance. Features a 25V DC voltage rating and a radial package suitable for through-hole PCB mounting. Operating temperature range is -55°C to 105°C, with a ripple current of 1.75A and a lifespan of 2000 hours. Dimensions include a 16mm diameter and 25mm height, with a 7.5mm lead pitch.
PackageRadial
Voltage25V
Capacitance4.7mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Panasonic EEU-HD1E472 technical specifications.
General
Capacitance
4.7mF
Package/Case
Radial
Construction
RADIAL
Diameter
16mm
Height
25mm
Height - Seated (Max)
1.063inch
Lead Diameter
0.8mm
Lead Pitch
7.5mm
Lead/Base Style
Straight
Length
25mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
Ripple Current
1.75A
Ripple Current (AC)
1.75A
RoHS Compliant
Yes
Series
Automotive, AEC-Q200, HD
Termination
Radial
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-HD1E472 Datasheet
Download the complete datasheet for Panasonic EEU-HD1E472 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

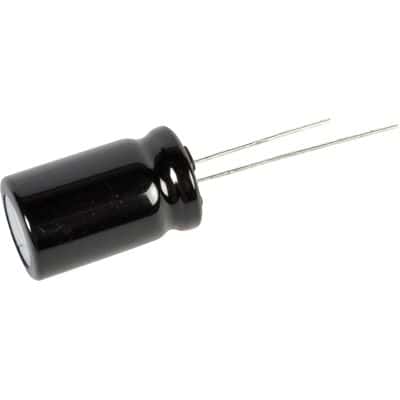

Product Images
