Aluminum electrolytic capacitor with 22µF capacitance and 50V voltage rating. Features a 20% tolerance, 65mA ripple current, and a 1000-hour life at 105°C. This radial component has a 2.5mm lead pitch, 5mm diameter, and 11mm height, designed for through-hole mounting.
PackageRadial
Voltage50V
Capacitance22uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Panasonic EEU-HD1H220 technical specifications.
General
Capacitance
22uF
Package/Case
Radial
Construction
RADIAL
Diameter
5mm
Height
11mm
Height - Seated (Max)
0.492inch
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2.5mm
Lead/Base Style
Straight
Length
11mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
65mA
Ripple Current (AC)
65mA
RoHS Compliant
Yes
Series
HD
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-HD1H220 Datasheet
Download the complete datasheet for Panasonic EEU-HD1H220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

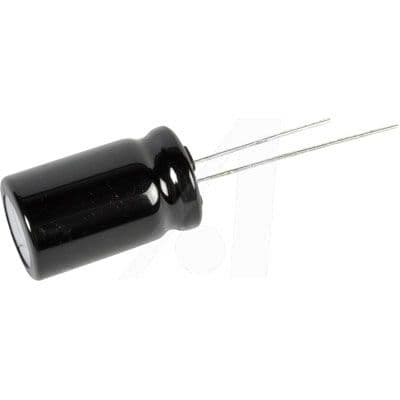

Product Images
