Technical Specifications
Panasonic EEV-EB2V100SM technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 16mm |
| Height | 16.5mm |
| Lead Free | Lead Free |
| Length | 16.5mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 270mA |
| RoHS Compliant | Yes |
| Series | EB |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEV-EB2V100SM Datasheet
Download the complete datasheet for Panasonic EEV-EB2V100SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

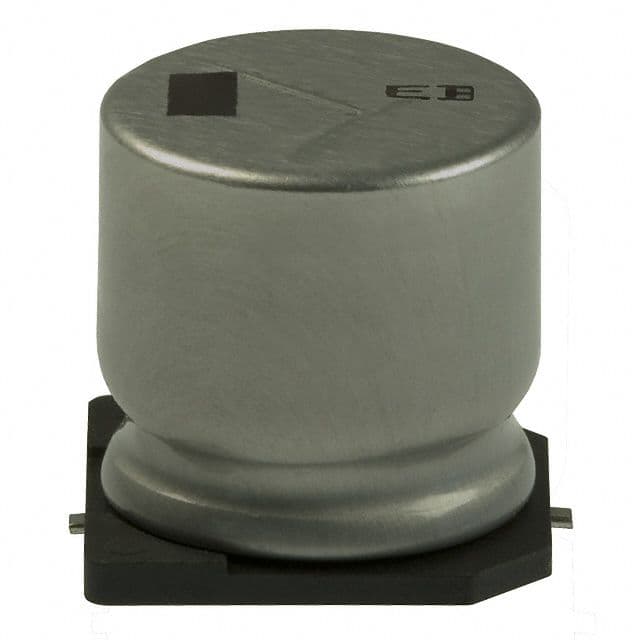

Product Images
