Surface mount aluminum electrolytic capacitor with 470uF capacitance and 20% tolerance, rated for 63V DC. Features a 1.41A ripple current capability and a low impedance of 82mR at 100kHz. Constructed with an aluminum dielectric in a cylindrical radial package, measuring 16mm in diameter and 16.5mm in height. Operates across a wide temperature range from -55°C to 105°C with a leakage current of 3uA. Designed for 5000 hours of life at rated temperature and voltage, meeting AEC-Q200 and RoHS compliance.
PackageRadial
Voltage63V
Capacitance470uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Panasonic EEV-FK1J471M technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 82mR |
| Height | 16.5mm |
| Impedance | 82mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 17mm |
| Life (Hours) | 5000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 125 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 1.41A |
| Ripple Current (AC) | 1.41A |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| Voltage Rating (AC) | 63V |
| DC Rated Voltage | 63V |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEV-FK1J471M Datasheet
Download the complete datasheet for Panasonic EEV-FK1J471M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

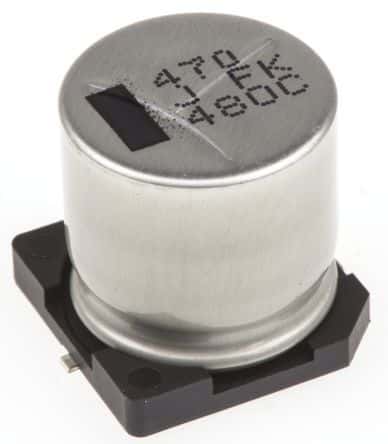

Product Images
