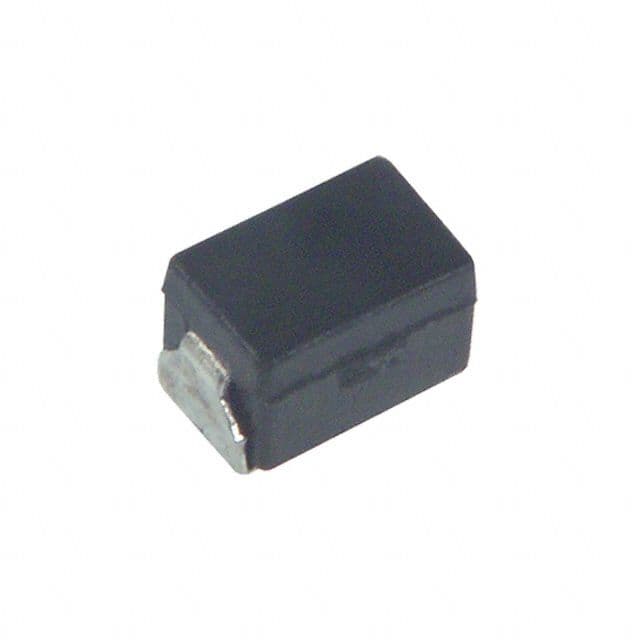

Surface mount fixed inductor with 10µH inductance and 10% tolerance. Features a 210mA rated current, 2.2Ω DC resistance, and ferrite core. Operates within a -20°C to 85°C temperature range. Packaged in a 1008 (3225 metric) SMD case for tape and reel deployment.
Package1008
Current115mA
Current Rating210mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ELJ-PC100KF technical specifications.
General
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 3225 |
| Package/Case | 1008 |
| Core Material | Ferrite |
| Current | 115mA |
| Current Rating | 210mA |
| DC Current | 210mA |
| DC Resistance (DCR) | 2.2R |
| Depth | 2.2mm |
| Height | 0.062inch |
| Inductance | 10uH |
| Inductance Tolerance | 10% |
| Inductor Type | POWER INDUCTOR |
| Lead Free | Lead Free |
| Length | 2.5mm |
| Max DC Current | 210mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| Radiation Hardening | No |
| Rated Current-Max | 210mA |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 210mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 32MHz |
| Series | PC |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 2.52MHz |
| Tolerance | 10% |
| Width | 2mm |
Compliance
| RoHS | Compliant |
