Shielded surface mount fixed inductor with 22µH inductance and 20% tolerance. Features a 1.3A DC current rating, 1.8A maximum current, and 98mΩ DC resistance. Dimensions are 6.5mm depth, 5mm height, and 6mm length/width. Packaged on tape and reel, this component is RoHS compliant.
PackageNonstandard
Current1.8A
Current Rating1.3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ELL-6UH220M technical specifications.
General
| Package/Case | Nonstandard |
| Current | 1.8A |
| Current Rating | 1.3A |
| DC Current | 1.3A |
| DC Resistance (DCR) | 98mR |
| DC Resistance-Max | 98MR |
| Depth | 6.5mm |
| Height | 5mm |
| Inductance | 22uH |
| Inductance Tolerance | 20% |
| Length | 6mm |
| Max DC Current | 1.3A |
| Military Standard | Not |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.3A |
| RoHS Compliant | Yes |
| Series | H |
| Series Resistance | 98mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELL-6UH220M Datasheet
Download the complete datasheet for Panasonic ELL-6UH220M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

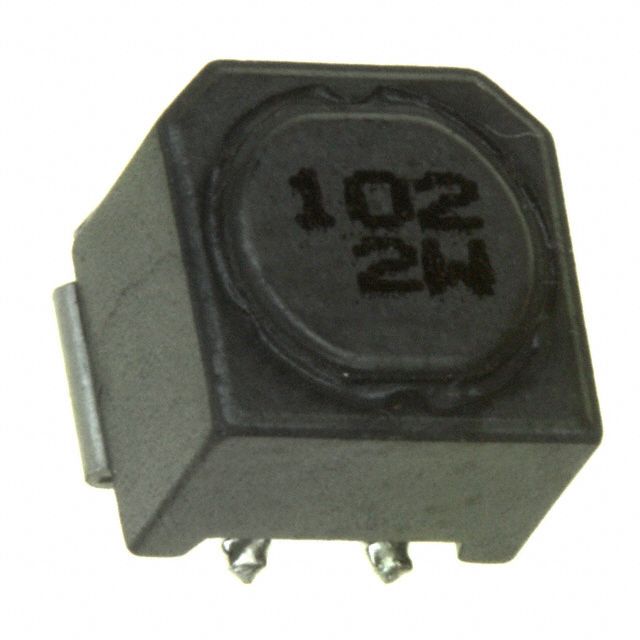

Product Images
