Shielded wirewound power choke with 330µH inductance and 20% tolerance. Features a 330mA DC current rating, 1.36Ω maximum DC resistance, and a shielded metal composite core. Surface mountable with dimensions of 6.5mm (depth) x 5mm (height) x 6mm (width). Operates up to 105°C and is RoHS compliant.
PackageNonstandard
Current700mA
Current Rating330mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ELL-6UH331M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Metal, Composite |
| Current | 700mA |
| Current Rating | 330mA |
| DC Current | 330mA |
| DC Resistance (DCR) | 1.36R |
| DC Resistance-Max | 1.36R |
| Depth | 6.5mm |
| Height | 5mm |
| Inductance | 330uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 6mm |
| Max DC Current | 330mA |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 330mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 100kHz |
| Series | H |
| Series Resistance | 1.36R |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELL-6UH331M Datasheet
Download the complete datasheet for Panasonic ELL-6UH331M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

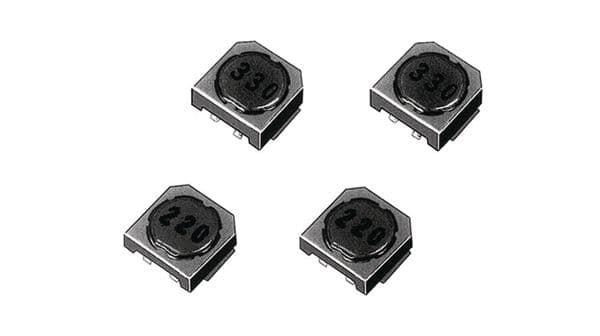

Product Images
