Automotive-grade 0805 SMD chip resistor featuring 22kR resistance with a precise 0.1% tolerance. This thin film metal element resistor offers a 1/8W (125mW) power rating and a 100V DC voltage rating. Designed for surface mounting, it operates across a wide temperature range of -55°C to 155°C and is packaged in tape and reel. Compliance includes RoHS and AEC-Q200 standards.
Package0805
Resistance22kR
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERA-6AEB223V technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Contact Plating | Tin |
| Depth | 1.25mm |
| Features | Automotive AEC-Q200 |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 22kR |
| Resistance Tolerance | 0.1% |
| Resistor Type | Thin Film |
| RoHS Compliant | Yes |
| Series | ERA |
| Technology | METAL FILM |
| Termination | SMD/SMT |
| Tolerance | 0.1% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Weight | 0.000194oz |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERA-6AEB223V Datasheet
Download the complete datasheet for Panasonic ERA-6AEB223V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

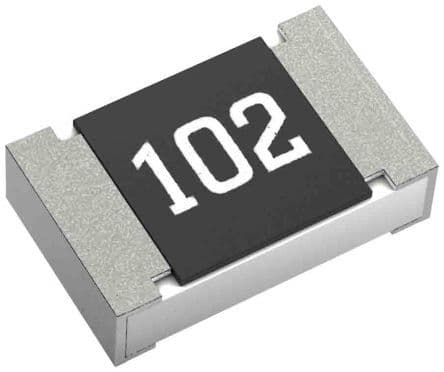

Product Images
