Surface mount resettable fuse with a 5A current rating and 32V DC voltage rating. Features a 19mΩ DC cold resistance and a compact 0603 (1608 metric) case size, measuring 1.6mm x 0.8mm. Constructed with an alumina body, it operates across a temperature range of -40°C to 125°C and is RoHS compliant. Supplied in tape and reel packaging.
Package0603
Voltage Rating32V
Current Rating5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERB-RE5R00V technical specifications.
General
Body Material
Alumina
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current Rating
5A
DC Cold Resistance
19mR
Depth
0.8mm
Fuse Current
5A
Fuse Size
1.6 X 0.8mm
Height
0.54mm
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
32V
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ERB-RE
Voltage Rating
32V
DC Rated Voltage
32V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ERB-RE5R00V Datasheet
Download the complete datasheet for Panasonic ERB-RE5R00V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

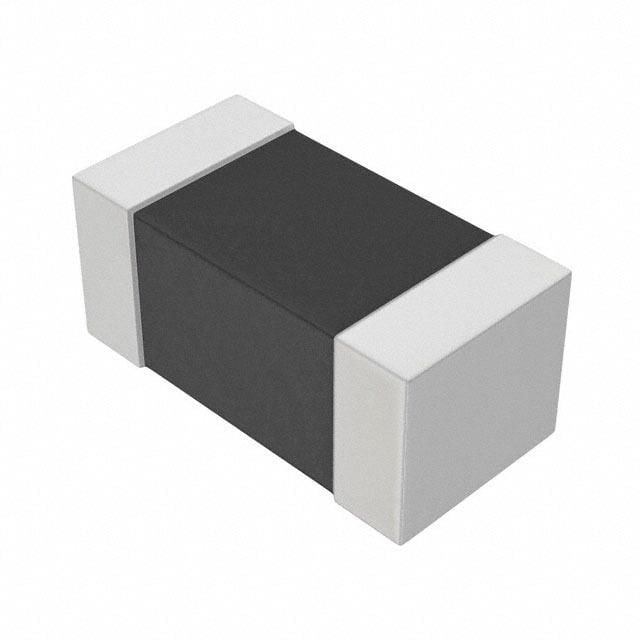

Product Images
