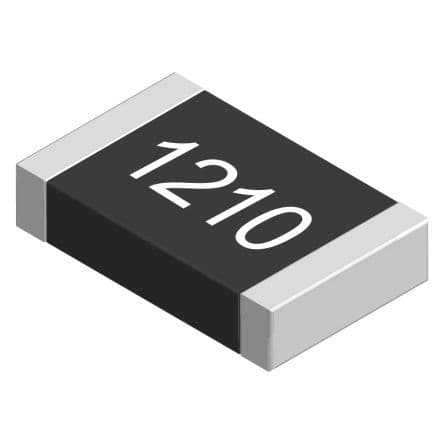

100 Ohm, 1% tolerance thick film chip resistor, 500mW power rating, 200V voltage rating. Features automotive AEC-Q200 qualification and operates from -55°C to 155°C. Surface mountable in a 1210 (3225 metric) case code with tin plating. Packaged in tape and reel.
Package1210
Resistance100R
Voltage Rating200V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-14NF1000U technical specifications.
General
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
1210
Construction
Rectangular
Contact Plating
Tin
Depth
2.5mm
Features
Automotive AEC-Q200
Height
0.6mm
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Surface Mount
Number of Terminations
2
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Resistance
100R
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
ERJ
Size Code
1210
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
200V
DC Rated Voltage
200V
Weight
0.000564oz
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ERJ-14NF1000U Datasheet
Download the complete datasheet for Panasonic ERJ-14NF1000U to view detailed technical specifications.
