Thick film chip resistor, 2.2kR resistance with 5% tolerance. Features a 1210 (3225 metric) case code, 500mW power dissipation, and 200V voltage rating. Operating temperature range from -55°C to 155°C. Surface mount technology with tin contact plating. Automotive AEC-Q200 qualified and RoHS compliant.
Package1210
Resistance2.2kR
Voltage Rating200V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-14YJ222U technical specifications.
General
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
1210
Construction
Rectangular
Contact Plating
Tin
Depth
2.5mm
Features
Automotive AEC-Q200
Height
0.6mm
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Surface Mount
Number of Terminations
2
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Resistance
2.2kR
Resistance Tolerance
5%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
ERJ
Size Code
1210
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
5%
Voltage Rating
200V
DC Rated Voltage
200V
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ERJ-14YJ222U Datasheet
Download the complete datasheet for Panasonic ERJ-14YJ222U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

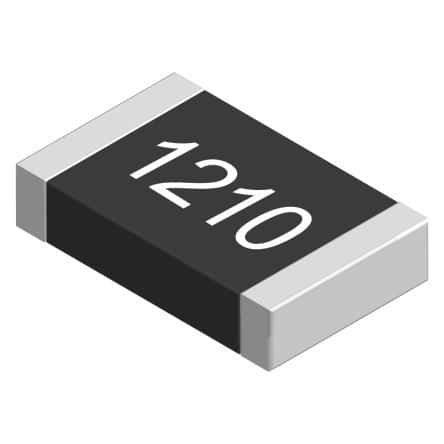

Product Images
