Automotive-grade thick film chip resistor, 47 Ohm resistance with 5% tolerance, rated for 1W power dissipation and 200V/250V DC voltage. Features a 2512 (6432 metric) surface mount package with tin plating and a wide operating temperature range of -55°C to 155°C. This lead-free, RoHS-compliant component is designed for automotive applications and packaged in tape and reel.
Package2512
Resistance47R
Voltage Rating200V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-1TYJ470U technical specifications.
General
| Case Code (Imperial) | 2512 |
| Case Code (Metric) | 6432 |
| Package/Case | 2512 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 3.2mm |
| Features | Automotive AEC-Q200 |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 6.4mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Military Standard | Not |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 47R |
| Resistance Tolerance | 5% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | ERJ |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 200V |
| DC Rated Voltage | 250V |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-1TYJ470U Datasheet
Download the complete datasheet for Panasonic ERJ-1TYJ470U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

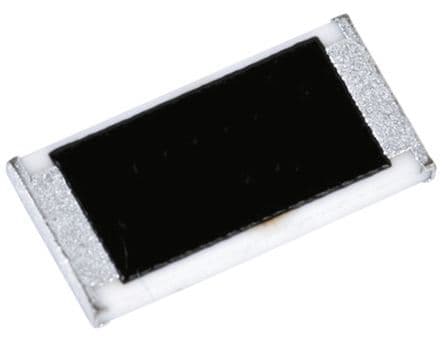

Product Images
