Surface mount chip resistor with 910kR resistance and 5% tolerance. Features a 0402 (1005 metric) case code, 1/10W (100mW) power dissipation, and a 50V voltage rating. Constructed with thick film technology, it operates from -55°C to 155°C and is supplied on tape and reel.
Package0402
Resistance910kR
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-2GEJ914X technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 0.5mm |
| Height | 0.35mm |
| Lead Free | Contains Lead |
| Length | 1mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 910kR |
| Resistance Tolerance | 5% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | ERJ |
| Technology | THICK FILM |
| Tolerance | 5% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-2GEJ914X Datasheet
Download the complete datasheet for Panasonic ERJ-2GEJ914X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

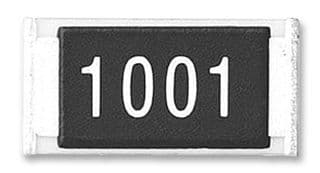

Product Images
