Surface mount chip resistor featuring 158kR resistance with a 1% tolerance. This thick film resistor is constructed in a 0402 (1005 metric) case code, measuring 1mm in length, 0.5mm in width, and 0.35mm in height. Rated for 100mW maximum power dissipation and 50V DC, it operates across a temperature range of -55°C to 155°C. The component is RoHS compliant, lead-free, and offers automotive AEC-Q200 qualification.
Package0402
Resistance158kR
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-2RKF1583X technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Construction
Rectangular
Contact Plating
Tin
Depth
0.5mm
Features
Automotive AEC-Q200
Height
0.35mm
Lead Free
Lead Free
Length
1mm
Max Operating Temperature
155°C
Max Power Dissipation
100mW
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Terminations
2
Package Quantity
10000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Resistance
158kR
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
ERJ
Size Code
0402
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ERJ-2RKF1583X Datasheet
Download the complete datasheet for Panasonic ERJ-2RKF1583X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

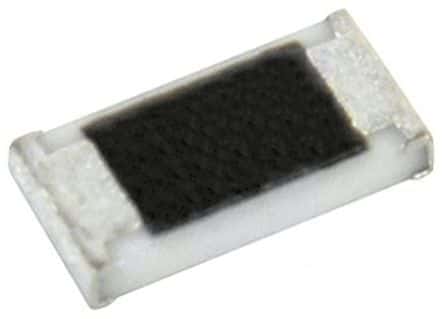

Product Images
