Surface mount thick film chip resistor, 120 Ohm resistance with 1% tolerance. Features a 0603 [1608 Metric] case size, 100mW power dissipation, and a 75V voltage rating. Operating temperature range from -55°C to 155°C, with automotive AEC-Q200 qualification. Lead-free and RoHS compliant, packaged in tape and reel.
Package603
Resistance120R
Voltage Rating75V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-3EKF1200V technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 603 |
| Contact Plating | Tin |
| Depth | 0.8mm |
| Features | Automotive AEC-Q200 |
| Height | 0.45mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Terminals/Pins | 2 |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Package Shape | Rectangular |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Resistance | 120R |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 75V |
| DC Rated Voltage | 75V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-3EKF1200V Datasheet
Download the complete datasheet for Panasonic ERJ-3EKF1200V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

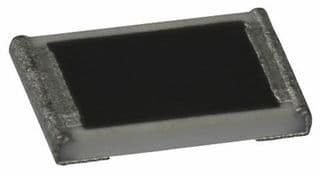

Product Images
