Surface mount chip resistor with 392 Ohm resistance and 1% tolerance. Features thick film technology in a 0603 (1608 metric) case code, rated for 1/10W (100mW) power dissipation and 75V voltage. Operating temperature range is -55°C to 155°C, with automotive AEC-Q200 qualification. Constructed with tin plating and lead-free materials, it is RoHS and REACH SVHC compliant.
Package0603
Resistance392R
Voltage Rating75V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-3EKF3920V technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Rectangular
Contact Plating
Tin
Depth
0.8mm
Features
Automotive AEC-Q200
Height
0.45mm
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Military Standard
Not
Mount
Surface Mount
Number of Terminations
2
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Yes
Resistance
392R
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
ERJ
Size Code
0603
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
75V
DC Rated Voltage
50V
Weight
7.1E-05oz
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ERJ-3EKF3920V Datasheet
Download the complete datasheet for Panasonic ERJ-3EKF3920V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

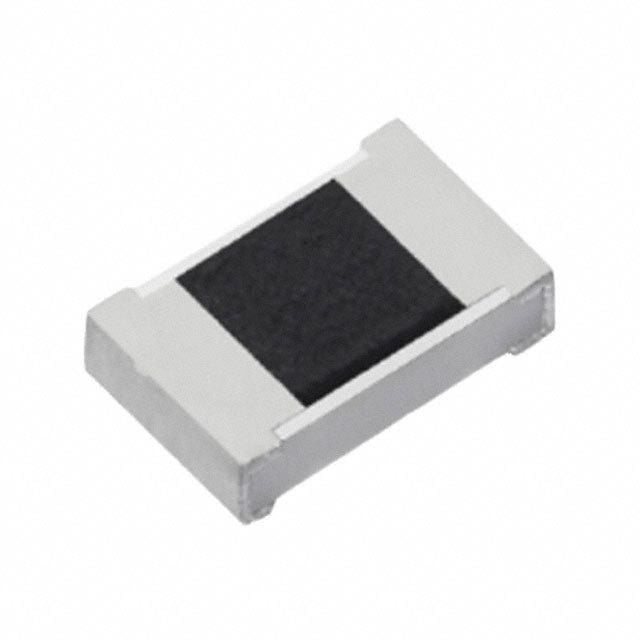

Product Images
