Surface mount thick film chip resistor with 220kΩ resistance and 1% tolerance. Features a 0805 case code (2012 metric), 125mW power dissipation, and 150V voltage rating. Operates across a wide temperature range from -55°C to 155°C and is automotive AEC-Q200 qualified. Packaged in tape and reel for efficient assembly.
Package0805
Resistance220kR
Voltage Rating150V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-6ENF2203V technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Contact Plating | Tin |
| Depth | 1.25mm |
| Features | Automotive AEC-Q200 |
| Height | 0.6mm |
| Length | 2mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 220kR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | ERJ |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 150V |
| DC Rated Voltage | 150V |
| Weight | 0.000194oz |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-6ENF2203V Datasheet
Download the complete datasheet for Panasonic ERJ-6ENF2203V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

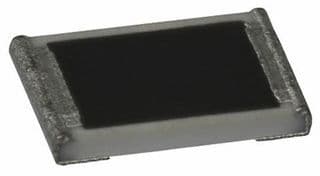

Product Images
