Surface mount thick film chip resistor with 20mΩ resistance and 1% tolerance. Features a 1206 case code (3.2mm x 1.6mm x 0.65mm) and 1W maximum power dissipation. Automotive AEC-Q200 qualified, operating from -55°C to 155°C. Tin contact plating, lead-free, and RoHS compliant.
Package1206
Resistance20mR
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-8BWFR020V technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Contact Plating | Tin |
| Depth | 1.6mm |
| Features | Automotive AEC-Q200 |
| Height | 0.65mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 20mR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | ERJ |
| Size Code | 1206 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-8BWFR020V Datasheet
Download the complete datasheet for Panasonic ERJ-8BWFR020V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

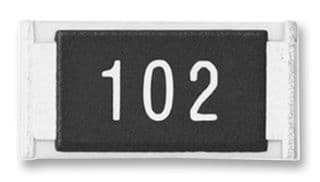

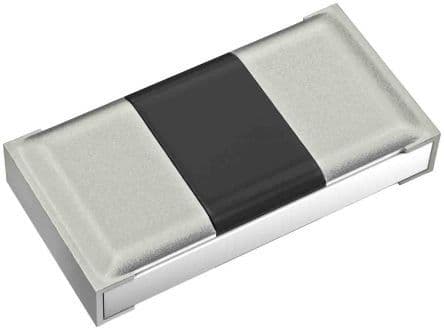

Product Images
