Surface mount chip resistor with 51mΩ resistance and 1% tolerance. Features 1W maximum power dissipation and a thick film technology. Designed for automotive applications with AEC-Q200 qualification. Housed in a 1206 (3216 metric) case with tin contact plating, operating from -55°C to 155°C.
Package1206
Resistance51mR
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-8BWFR051V technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Contact Plating | Tin |
| Depth | 1.6mm |
| Features | Automotive AEC-Q200 |
| Height | 0.65mm |
| Length | 3.2mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Resistance | 51mR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | ERJ |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-8BWFR051V Datasheet
Download the complete datasheet for Panasonic ERJ-8BWFR051V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

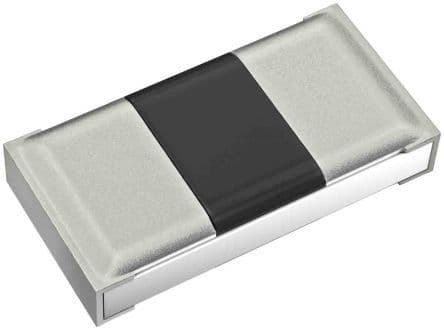

Product Images
