Surface mount chip resistor with 100mΩ resistance and 1% tolerance. Features a 0603 (1608 metric) case size, 200mW power dissipation, and thick film technology. Operating temperature range is -55°C to 125°C, with tin contact plating. Automotive AEC-Q200 qualified and RoHS compliant.
Package0603
Resistance100mR
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-L03KF10CV technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Contact Plating | Tin |
| Depth | 0.8mm |
| Features | Automotive AEC-Q200 |
| Height | 0.45mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Resistance | 100mR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | ERJ |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-L03KF10CV Datasheet
Download the complete datasheet for Panasonic ERJ-L03KF10CV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

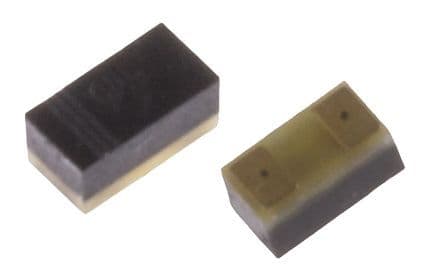

Product Images
