Thick film chip resistor, 0805 (2012 metric) case code, featuring 1.5 kΩ resistance with 5% tolerance. This surface mount component offers 0.25W (500mW max) power dissipation and a ±200ppm/°C temperature coefficient, operating from -55°C to 155°C. Constructed with tin plating and a molded body, it is lead-free, RoHS compliant, and rated for 150V. Automotive AEC-Q200 qualified, supplied on punched carrier tape and reel.
Package0805
Resistance1.5kR
Voltage Rating150V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-P06J152V technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 1.25mm |
| Features | Automotive AEC-Q200 |
| Height | 0.028inch |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 155°C |
| Max Power Dissipation | 500mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Resistance | 1.5kR |
| RoHS Compliant | Yes |
| Series | ERJ |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 150V |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-P06J152V Datasheet
Download the complete datasheet for Panasonic ERJ-P06J152V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

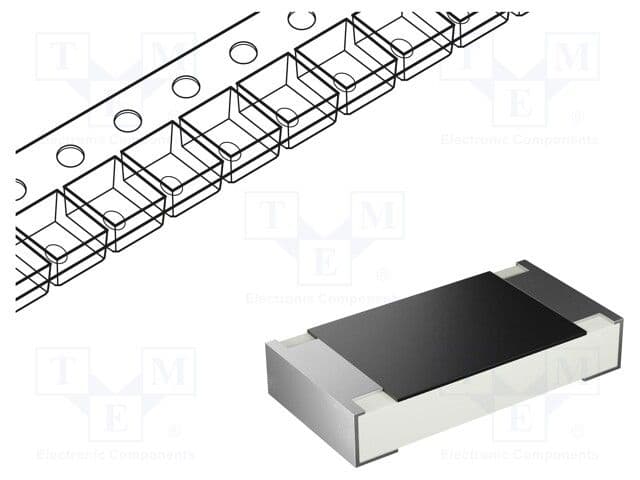

Product Images
