Automotive-grade SMD chip resistor with 110kR resistance and 5% tolerance. Features a 1210 (3225 metric) case size, 500mW power dissipation, and a 200V DC voltage rating. Operating temperature range is -55°C to 155°C. Constructed with tin contact plating and suitable for surface mounting. Packaged in tape and reel.
Package1210
Resistance110kR
Voltage Rating200V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-P14J114U technical specifications.
General
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 2.5mm |
| Features | Automotive AEC-Q200 |
| Height | 0.6mm |
| Lead Free | Contains Lead |
| Length | 3.2mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Resistance | 110kR |
| RoHS Compliant | Yes |
| Series | ERJ |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-P14J114U Datasheet
Download the complete datasheet for Panasonic ERJ-P14J114U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

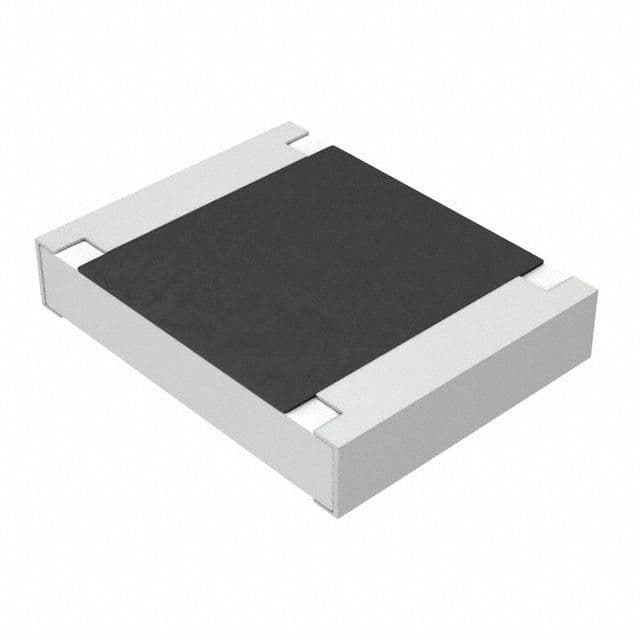

Product Images
