SPST-NO detector switch with a 10mA current rating and 5V DC voltage rating. Features a 35gf operating force, 2.4mm actuator length, and right-angle orientation. Through-hole mounting with PC pin termination. Offers 50,000 cycles of electrical and mechanical life, operating between -10°C and 70°C.
Current Rating10mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic ESE-11SH2C technical specifications.
General
| Actuator Length | 2.4mm |
| Body Depth | 7.1mm |
| Body Length | 6.4mm |
| Current Rating | 10mA |
| Electrical Life | 50000Cycles |
| Height | 4.2mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 5V |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Through Hole |
| Operating Force | 35gf |
| Orientation | Right Angle |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ESE11 |
| Switch Function | Off-Mom |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 5V |
| Width | 5.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ESE-11SH2C Datasheet
Download the complete datasheet for Panasonic ESE-11SH2C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

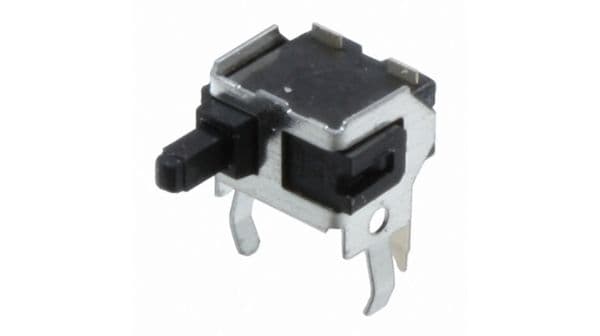

Product Images
