SPST-NO detector switch with a 10mA current rating and 5V DC voltage rating. Features a 0.35N operating force and a 0.305-inch operating position. Through-hole PCB mounting with straight orientation and PC pin termination. Electrical and mechanical life rated at 50,000 cycles. Compact dimensions include a 6.4mm body length, 3.2mm body depth, 5.9mm body height, and 3mm width, with a 2.6mm actuator length. Operates within a temperature range of -10°C to 70°C.
Current Rating10mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic ESE-11SV1 technical specifications.
General
Actuator Length
2.6mm
Body Depth
3.2mm
Body Height
5.9mm
Body Length
6.4mm
Contact Current Rating
10mA
Current Rating
10mA
Electrical Life
50000Cycles
Height
6.1mm
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
50000Cycles
Min Operating Temperature
-10°C
Max Voltage Rating (DC)
5V
Mount
Through Hole, PCB
Number of Positions
2
Operating Force
0.35N
Operating Position
0.305inch
Orientation
Straight
Package Quantity
1000
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ESE11
Switch Function
Off-Mom
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
5V
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ESE-11SV1 Datasheet
Download the complete datasheet for Panasonic ESE-11SV1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

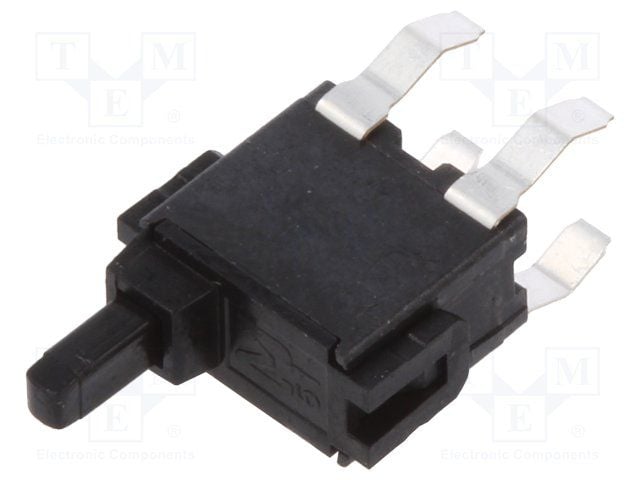

Product Images
