SPST-NO detector switch with a right-angle orientation and SMD/SMT termination. Features a 1.2mm body height, 3.6mm body length, and 4.2mm body depth. Offers a 10mA contact current rating at 5V DC, with an electrical and mechanical life of 50,000 cycles. Includes a 2.3mm toggle actuator and a 0.3N operating force. RoHS compliant and lead-free.
Current Rating10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ESE-13H01C technical specifications.
General
Actuator Length
2.3mm
Actuator Type
Toggle
Body Depth
4.2mm
Body Height
1.2mm
Body Length
3.6mm
Contact Current Rating
10mA
Current Rating
10mA
Electrical Life
50000Cycles
Height
1.2mm
Lead Free
Lead Free
Max Operating Temperature
60°C
Max Voltage Rating (DC)
5V
Mechanical Life
50000Cycles
Min Operating Temperature
-10°C
Mount
Surface Mount
Operating Force
0.3N
Orientation
Right Angle
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ESE13
Switch Function
Off-Mom
Termination
SMD/SMT
Throw Configuration
SPST
DC Rated Voltage
5V
Width
3.6mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ESE-13H01C Datasheet
Download the complete datasheet for Panasonic ESE-13H01C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

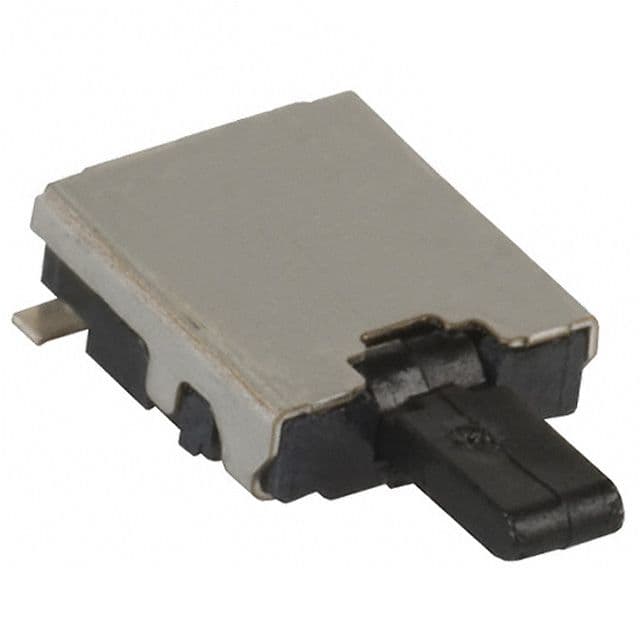

Product Images
