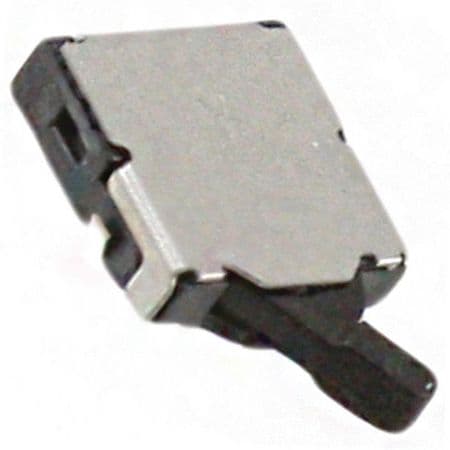

Surface mount detector switch featuring SPST-NO (Single Pole Single Throw Normally Open) configuration. Offers a 10mA contact current rating and a 5V DC voltage rating. Designed with a right-angle orientation and a 2.15mm toggle actuator. This switch boasts a mechanical and electrical life of 50,000 cycles and operates within a temperature range of -10°C to 60°C. Packaged on tape and reel for efficient assembly.
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ESE-18L11D technical specifications.
General
Actuator Length
2.15mm
Actuator Type
Toggle
Body Depth
4.15mm
Body Height
1.2mm
Body Length
4mm
Contact Current Rating
10mA
Electrical Life
50000Cycles
Height
1.2mm
Lead Free
Lead Free
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Max Voltage Rating (DC)
5V
Mechanical Life
50000Cycles
Mount
Surface Mount
Number of Positions
1
Operating Force
30gf
Orientation
Right Angle
Package Quantity
5000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ESE18
Switch Function
Off-Mom
Termination
SMD/SMT
Throw Configuration
SPST
DC Rated Voltage
5V
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ESE-18L11D Datasheet
Download the complete datasheet for Panasonic ESE-18L11D to view detailed technical specifications.
