Panasonic
ESE-20C323
Switch Push Button ON OFF SPST Square Plunger 0.1A 14VDC Momentary Contact PC Pins Thru-Hole Bulk
Current Rating100mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic ESE-20C323 technical specifications.
General
Actuator Type
Square, Button
Contact Current Rating
100mA
Current Rating
100mA
Lead Free
Lead Free
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
14V
Mount
Through Hole, PCB
Operating Force
4N
Orientation
Straight
Package Quantity
60
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ESE20C
Switch Function
Off-Mom
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
14V
Compliance
RoHS
Compliant
Datasheet
Panasonic ESE-20C323 Datasheet
Download the complete datasheet for Panasonic ESE-20C323 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

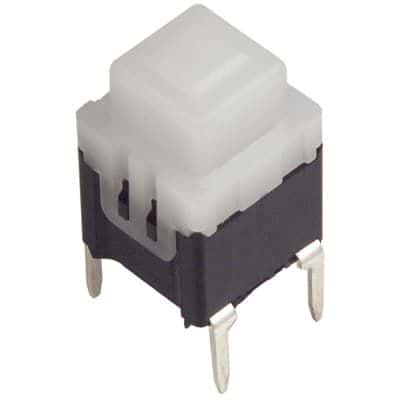

Product Images
