Technical Specifications
Panasonic ESE-20C423 technical specifications.
General
Actuator Length
5.5mm
Actuator Type
Lever
Contact Current Rating
100mA
Depth
8.15mm
Lead Free
Lead Free
Length
7.9mm
Max Current Rating
100mA
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
14V
Mount
Through Hole
Operating Force
4N
Orientation
Straight
Package Quantity
60
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ESE20C
Switch Function
Off-Mom
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
14V
Compliance
RoHS
Compliant
Datasheet
Panasonic ESE-20C423 Datasheet
Download the complete datasheet for Panasonic ESE-20C423 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

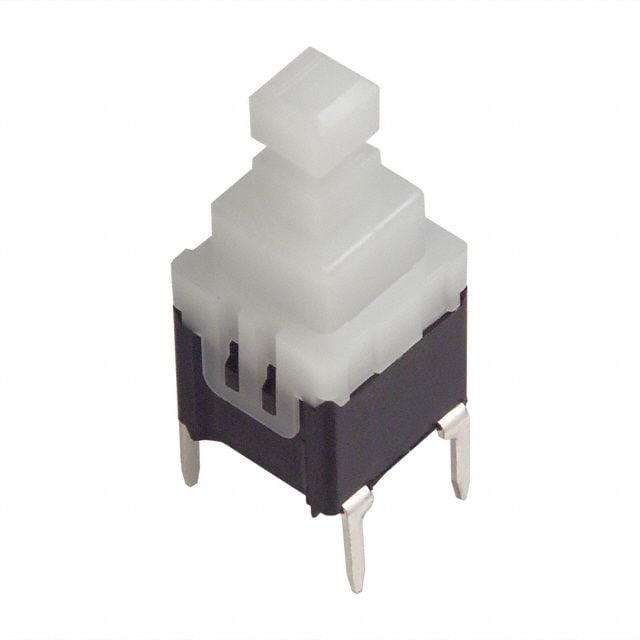

Product Images
