Technical Specifications
Panasonic ESE-20D323 technical specifications.
General
Actuator Type
Square, Button
Contact Current Rating
100mA
Lead Free
Lead Free
Length
7.9mm
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Through Hole
Operating Force
4N
Orientation
Vertical
Package Quantity
60
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ESE20D
Switch Function
Off-Mom
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
14V
Width
7.8mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ESE-20D323 Datasheet
Download the complete datasheet for Panasonic ESE-20D323 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

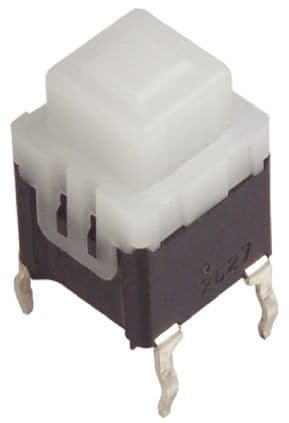

Product Images
