SPST-NO detector switch with a 10mA contact current rating and 5V DC voltage rating. Features a 2.2mm toggle actuator and surface mount termination for PCB applications. Offers a mechanical and electrical life of 50,000 cycles, with an operating force of 30gf. Operates within a temperature range of -10°C to 70°C and is RoHS compliant. Packaged in tape and reel for efficient assembly.
Voltage Rating5V
Current Rating10mA
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Panasonic ESE-22MV21T technical specifications.
General
| Actuator Length | 2.2mm |
| Actuator Type | Toggle |
| Body Depth | 1.9mm |
| Body Height | 4.1mm |
| Body Length | 5.7mm |
| Contact Current Rating | 10mA |
| Current Rating | 10mA |
| Electrical Life | 50000Cycles |
| Height | 4.1mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (DC) | 5V |
| Mechanical Life | 50000Cycles |
| Mount | Surface Mount, PCB |
| Operating Force | 30gf |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ESE22 |
| Switch Function | Off-Mom |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
| Width | 1.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ESE-22MV21T Datasheet
Download the complete datasheet for Panasonic ESE-22MV21T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

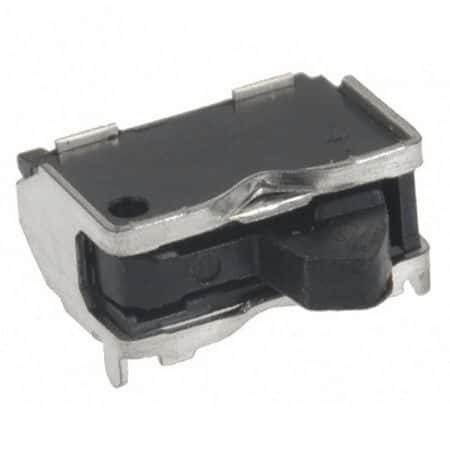

Product Images
