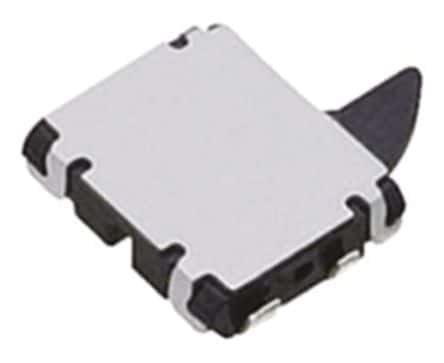

Surface mount tactile switch featuring a right-angle orientation and J-bend termination. This SPST, NO switch offers a 1.4mm toggle actuator with a 30gf operating force and a 0.079-inch operating position. Rated for 5V DC and 10mA, it boasts an electrical and mechanical life of 50,000 cycles. Operating within a temperature range of -10°C to 60°C, this lead-free component is supplied in tape and reel packaging.
Current Rating10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ESE-58L11B technical specifications.
General
Actuator Length
1.4mm
Actuator Type
Toggle
Body Depth
3mm
Body Height
0.9mm
Body Length
3.5mm
Contact Current Rating
10mA
Current Rating
10mA
Electrical Life
50000Cycles
Lead Free
Lead Free
Max Operating Temperature
60°C
Max Voltage Rating (DC)
5V
Mechanical Life
50000Cycles
Min Operating Temperature
-10°C
Mount
Surface Mount
Operating Force
30gf
Operating Position
0.079inch
Orientation
Right Angle
Package Quantity
5000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ESE58
Switch Function
Off-Mom
Termination
J-Bend
Throw Configuration
SPST
DC Rated Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Panasonic ESE-58L11B Datasheet
Download the complete datasheet for Panasonic ESE-58L11B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
