Technical Specifications
Panasonic EVM-2WSX80B23 technical specifications.
General
Color
Silver
Depth
2.75mm
Height
0.041inch
Length
2.2mm
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Power Dissipation
150mW
Mount
Surface Mount
Number of Turns
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
2kR
Resistance Tolerance
25%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
EVM
Technology
CERMET
Termination
Foot Print
Tolerance
25%
Compliance
RoHS
Compliant
Datasheet
Panasonic EVM-2WSX80B23 Datasheet
Download the complete datasheet for Panasonic EVM-2WSX80B23 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

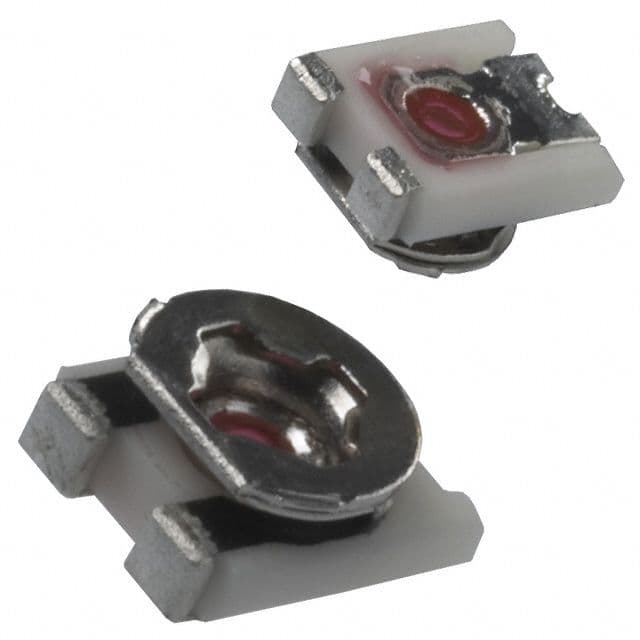

Product Images
