Panasonic
EVM-AASA00B55
Res Cermet Trimmer 500K Ohm 25% 3/10W 1Turn 3.6mm (7.8 X 6.9 X 7.6mm) Pin Thru-Hole Ammo Pack
Resistance500kR
Voltage Rating100V
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic EVM-AASA00B55 technical specifications.
General
Color
Grey
Diameter
6.9mm
Height
0.3inch
Length
7.8mm
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Power Dissipation
300mW
Mount
Through Hole
Number of Turns
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
500kR
Resistance Tolerance
25%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
EVM-AAS
Technology
CERMET
Termination
PC Pin
Tolerance
25%
Voltage Rating
100V
Compliance
RoHS
Compliant
Datasheet
Panasonic EVM-AASA00B55 Datasheet
Download the complete datasheet for Panasonic EVM-AASA00B55 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

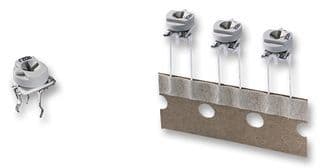

Product Images
