Surface mount tactile switch featuring a SPST-NO throw configuration. Offers a 20mA contact current rating and a 15V DC voltage rating. This non-illuminated, black actuator switch has a 1.6N operating force and a 0.15mm switch travel. Designed for a 200,000 cycle electrical and mechanical life, it operates within a -40°C to 85°C temperature range. Packaged on tape and reel, this RoHS compliant component utilizes J-bend termination.
PackageSMD/SMT
Storage2.9mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EVP-AA202K technical specifications.
General
| Actuator Color | Black |
| Actuator Length | 0.3mm |
| Actuator Type | Standard |
| Package/Case | SMD/SMT |
| Color | Black |
| Contact Current Rating | 20mA |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Depth | 2.9mm |
| Electrical Life | 200000Cycles |
| Height | 0.7mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 4.3mm |
| Max Current Rating | 20mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 200000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 15V |
| Mount | Surface Mount |
| Number of Positions | 2 |
| Operating Force | 1.6N |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EVPAA |
| Size | 2.9mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.15mm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| DC Rated Voltage | 15V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EVP-AA202K Datasheet
Download the complete datasheet for Panasonic EVP-AA202K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

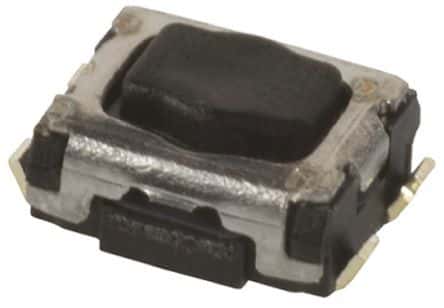

Product Images
