Surface mount tactile switch with SPST-NO throw configuration. Features a 0.02A current rating at 15V DC, 50mA current rating, and 12V DC rated voltage. Offers 100,000 cycles of electrical and mechanical life. Includes a standard grey actuator with 0.3mm length and 0.15mm switch travel. Operating force is 5N. Non-illuminated, black in color, with J-bend termination.
PackageSMD/SMT
Storage2.9mm
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic EVP-AA902Q technical specifications.
General
| Actuator Color | Grey |
| Actuator Length | 0.3mm |
| Actuator Type | Standard |
| Package/Case | SMD/SMT |
| Color | Black |
| Current Rating | 50mA |
| Electrical Life | 100000Cycles |
| Height | 0.7mm |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 15V |
| Mechanical Life | 100000Cycles |
| Mount | Surface Mount |
| Operating Force | 5N |
| Orientation | Straight |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | EVPAA |
| Size | 2.9mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.15mm |
| Termination | J-Bend |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EVP-AA902Q Datasheet
Download the complete datasheet for Panasonic EVP-AA902Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

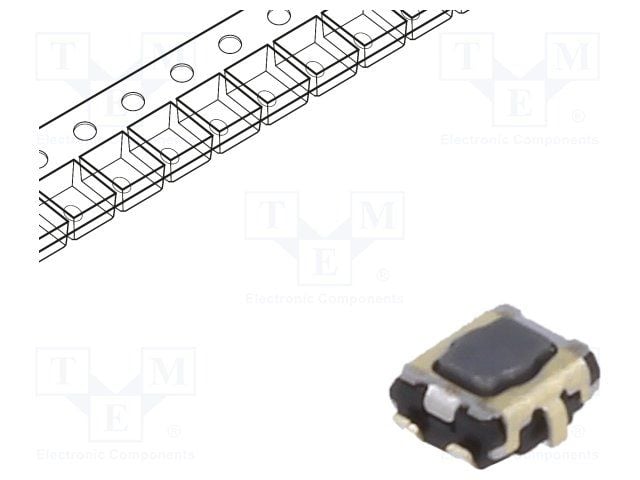

Product Images
